From beam to wash.
Motorised 2.5°–43° zoom changes coverage from a concentrated beam to a broad wash.
Titan 4000Px Aqua
LARGE FESTIVALS · OUTDOOR CONCERT STAGES
Big stages.
Bold light.Pixel-level expression.

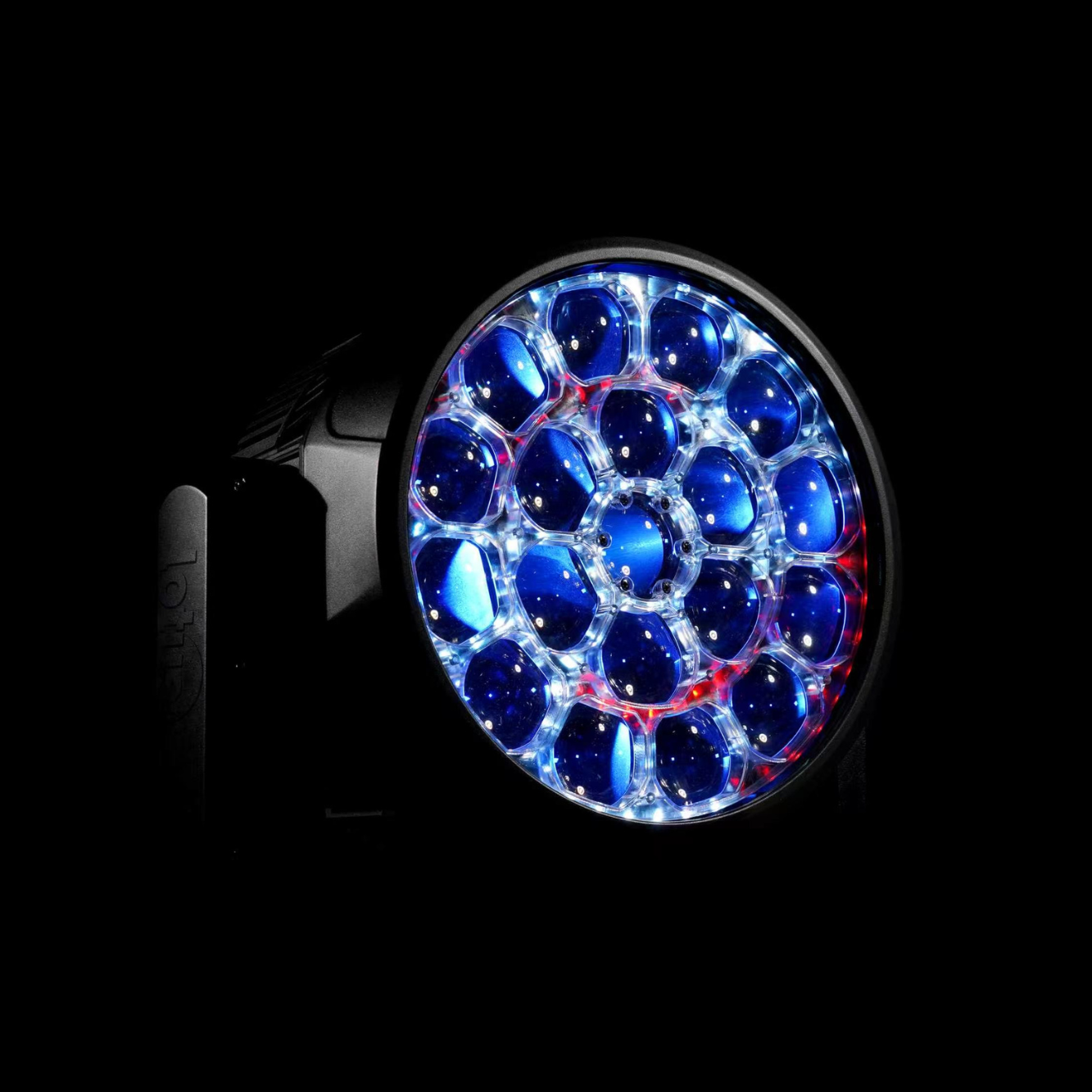

19x120W RGBW LEDs bring powerful wash coverage to large-scale productions. A 2.5°–43° zoom moves from concentrated beams to broad washes, while 132 RGB effect LEDs add another layer of colour and movement.
Shape the stage with light. Build depth with pixel effects. Make the fixture itself part of the show—all in an IP66-rated design.
TITAN 4000 Px AQUA · CREATIVE POWER
Colour.
Movement.
Pixel by pixel.
Fill the stage with RGBW colour. Build another layer with 132 individually controlled RGB LEDs and shape the coverage with motorised zoom.
Performance
Main LEDs19 × 120WRGBW
Effect LEDs1320.5W RGB
Zoom range2.5°–43°Motorised zoom
ColourRGBWAdditive mixing
CTO2300–10000 KVariable CTO
IP ratingIP66Outdoor fixture
Net weight30 kgPer fixture
THE DESIGNER'S TOOLKIT
One fixture. A wider vocabulary.
Build the palette.
RGBW colour mixing, colour macros and variable CTO from 2300K to 10000K give each cue its character.
Control every point.
Each of the 19 main RGBW LEDs supports individual pixel control for colour patterns across the fixture face.
A second layer of light.
132 individually controllable 0.5W RGB LEDs add auxiliary wash and front-face effects around the main array.
Connect to your show.
DMX512 and RDM, optional ArtNet™ and sACN, 16-bit movement and firmware updates via DMX support show integration.
Plan the rig.
IP66 protection, a 30 kg fixture body and 480 × 370 × 585 mm dimensions. Operates from −10°C to +45°C.
WASH · PIXEL · EYE EFFECT
More than a wash.
Combine stage coverage with the visual character of the LED face. Two light-source systems give your cues another dimension.
Pixel by pixel.
Each of the 19 RGBW main LEDs supports individual pixel control. Create colour patterns across the fixture face and combine them with the motorised zoom.
A second layer of light.
The 132 auxiliary RGB LEDs are individually controllable, adding a separate layer of colour and patterns around the main RGBW array.
01 / OPTICS
Change the scale.
Motorised linear zoom from 2.5° to 43° moves the look from a concentrated accent to wider wash coverage.
02 / CTO
Warm to cool.
Colour temperature adjustment spans 2300K–10000K.
2300K10000K
03 / CONTROL
Program the detail.
DMX512 and RDM provide wired control. ArtNet™ and sACN are available with the optional network configuration. Extended 13 + 472-channel operation combines DMX512, RDM, Auto, ArtNet™ & sACN
AQUA / IP66
Ready for
the outdoor stage.
IP66 protection brings the Titan wash and effects system to outdoor productions. A 30 kg fixture body houses the main RGBW source, effect LEDs and motorised zoom.
RJ-45, 3-pin and 5-pin XLR connections support DMX integration and ArtNet™ + sACN. Dependent; confirm the required option when requesting a quote.
EXPLORE SPECIFICATIONS ↓
TITAN 4000 Px AQUA
Product gallery
Premium Packaging
SEE IT IN MOTION
Colour becomes movement.
TITAN 4000 Px AQUA
Technical specifications
LIGHT SOURCE & OPTICS
- 19 × 120W RGBW LEDs
- 132 × 0.5W RGB effect LEDs
- Motorised linear zoom: 2.5°–43°
COLOUR & EFFECTS
- RGBW additive colour mixing
- Variable CTO: 2300K–10000K
- Individual control of 19 RGBW pixels and 132 auxiliary RGB LEDs
- 0–100% dimming; four selectable dimming curves
- Variable strobe with random effects
CONTROL
- Protocols and modes: DMX512, RDM, Auto, ArtNet™ and sACN
- Firmware updates via DMX
- DMX modes: 21 / 37 / 42 / 100 channels
- Extended mode: 13 + 472 channels (DMX + ArtNet™)
ELECTRICAL & CONNECTIONS
- Power input: AC 100–240V, 50/60Hz
- Power consumption: 2500W
- DMX & Power in / out:
- 3 Pin / Seetronic: C3F2C-W-B
- 5 Pin / Seetronic: C5F2C-W-B
- RJ-45 / Seetronic Waterproof Socket
- Power Con: True 1 input
MOVEMENT & DISPLAY
- Pan: 540°; tilt: 230°
- 16-bit movement with automatic position correction
- Reversible 2.8-inch TFT display
- Temperature-controlled light output and fan speed
HOUSING & DIMENSIONS
- IP66 outdoor protection
- Fixture (W × D × H): 480 × 370 × 585 mm
- Net weight: 30 kg
- Operating temperature: −10°C to +45°C
Premium Packaging
- Two fixtures per flight case
- Flight case (W × D × H): 960 × 540 × 810 mm
- Gross weight: 114 kg
- Includes 2 folding clamps, 2 safety ropes and 2 × 2 m CEE 16A-to-powerCON TRUE1 power cables.
LIGHT OUTPUT / RGBW
Photometric data
DOCUMENTATION & DESIGN RESOURCES
Technical support
Need fixture libraries, control documentation or project support? Contact our technical team ↗
Bring Titan to your next stage.
Request pricing, availability or a product demonstration. Include your company, country, quantity and required delivery date so our team can prepare a relevant offer.
