Titan 1200MKII Aqua

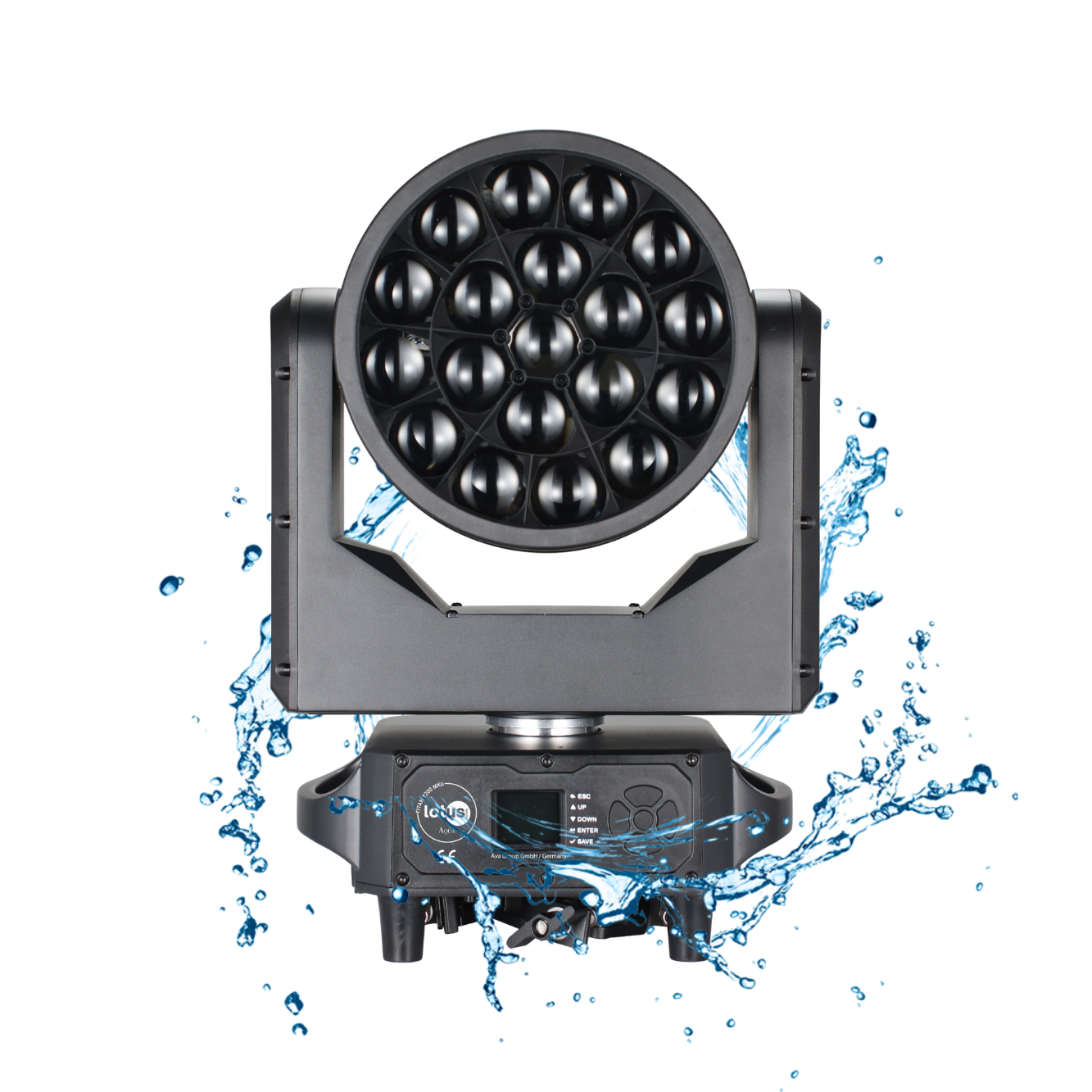

Lotus Titan 1200 MKII Aqua — multicolour RGBW wash
CONCERTS · LIVE EVENTS · OUTDOOR PRODUCTIONS

Compact scale.
Wide expression.Colour in motion.

19 × 40W RGBW LEDs bring saturated colour and flexible coverage to a compact moving wash. Sweep from a focused 3.5° beam to a broad 48° wash, then build movement across the LED face with ring control and built-in effects.

An IP65 housing, 13.5 kg fixture weight and ArtNet™ control make Titan 1200 MKII Aqua a practical tool for touring rigs, live events and outdoor productions.

Titan 1200 MKII Aqua — close-up of purple and yellow-green lenses
TITAN 1200 MKII AQUA · CREATIVE POWER

Colour.
Coverage.
Ring by ring.

Move between tight beams and broad washes. Layer RGBW colour across three zones, bring patterns into motion and give every cue a different scale.

Performance

Main LEDs19 × 40WRGBW 4-in-1
Illuminance18,100 luxAt 5 m / 3.5°
Zoom range3.5°–48°Motorised zoom
ColourRGBWAdditive mixing
ControlArtNet™DMX512 / RDM
IP ratingIP65Outdoor fixture
Net weight13.5 kgPer fixture
THE DESIGNER’S TOOLKIT

One fixture. A wider vocabulary.

01 / OPTICS

Change the scale.

A 3.5°–48° motorised zoom moves the look from concentrated aerial accents to wide stage coverage.

02 / COLOUR

Build the look.

RGBW mixing brings colour to every cue. Add colour macros and CCT presets from 2800K to 8000K.

03 / EFFECTS

Work the rings.

Three-zone control and built-in static and dynamic patterns create layered colour looks across the LED face.

04 / INTENSITY

Set the rhythm.

Full-range dimming and 1–25 Hz strobe support smooth fades, pulses and rhythmic accents.

05 / CONTROL

Connect to your show.

DMX512, RDM and ArtNet™ support show integration, alongside Auto, Sound, Master and Manual modes.

06 / HANDLING

Travel compact.

At 13.5 kg, the fixture is easy to plan into a touring rig. Four units travel together in the Lotus flight case.

WASH · COLOUR · RING EFFECT

More than a wash.

Shape the room with zoom, then make the LED face part of the look.

A field of colour.

19 RGBW sources create a unified wash. Colour macros and full-range dimming let you move from a quiet scene to a bold accent.

Layers within the light.

Control the three zones separately and combine foreground and background colours with static or dynamic effect macros.

01 / ZOOM

Focus to flood.

Motorised zoom spans 3.5°–48°.

02 / COLOUR TEMPERATURE

Warm to cool.

CCT presets cover 2800K–8000K.

2800K8000K
03 / CONTROL

Program the detail.

Choose 21, 23, 35, 78, 92, 97 or 99-channel DMX modes, plus the 76-channel DMX + ArtNet™ mode.

AQUA / IP65

Ready for
the outdoor stage.

IP65 protection brings the compact RGBW wash to outdoor productions. The specified operating range is −10°C to +45°C.

Seetronic powerCON TRUE1 in/out, 5-pin XLR, and waterproof RJ45 connections bring power, DMX512, RDM and ArtNet™ to the rig.

EXPLORE THE SPECIFICATIONS ↓
Titan 1200 MKII Aqua — green LED face
TITAN 1200 MKII AQUA

Product gallery

Titan 1200 MKII Aqua — colour view 1
Titan 1200 MKII Aqua — colour view 2
Titan 1200 MKII Aqua — colour view 3
Titan 1200 MKII Aqua — colour view 4

Premium Packaging

Titan 1200 MKII Aqua — open four-unit flight case
4 in 1 Fly Case
Titan 1200 MKII Aqua — dimensions and clamp centres
Net weight: 13.5 kg
Titan 1200 MKII Aqua — case 740 × 580 × 570 mm
CBM: 0.245 m³ · G.W.: 106 kg
Link cables & safety set
TITAN 1200 MKII AQUA

Technical specifications

LIGHT SOURCE & OPTICS
  • 19 × 40W 4-in-1 RGBW LEDs
  • LED lifetime: ≥ 50,000 hours
  • Motorised zoom: 3.5°–48°
COLOUR & EFFECTS
  • RGBW additive colour mixing
  • Three-zone ring control
  • Static and dynamic effect macros
  • CCT presets: 2800K–8000K
  • Full-range dimming; 1–25 Hz strobe
CONTROL & MODES
  • Protocols and modes: DMX512, RDM, Auto, Sound, Master, Manual and ArtNet™
  • DMX modes: 21 / 23 / 35 / 78 / 92 / 97 / 99 channels
  • DMX + ArtNet™ mode: 76 channels
ELECTRICAL & CONNECTIONS
  • Power input: AC 100–240V, 50/60Hz
  • Power consumption: 650W ±5W
  • DMX & Power in / out:
  • 5 Pin / Seetronic: C5F2C-W-B
  • RJ-45 / Seetronic Waterproof Socket
  • Power Con: True 1 in / Out
MOVEMENT & DISPLAY
  • Pan: 540° / tilt: 270°
  • Fine pan and tilt control with automatic position correction
  • 1.8-inch TFT colour display; 180° display rotation
HOUSING & DIMENSIONS
  • IP65 protection
  • Die-cast housing with flame-retardant carbon-fibre components
  • Fan cooling
  • Fixture (W × D × H): 341 × 250 × 463 mm
  • Net weight: 13.5 kg
  • Operating temperature: −10°C to +45°C
Premium Packaging
  • Four fixtures per flight case
  • Flight case (W × D × H): 740 × 580 × 570 mm
  • Case volume: 0.245 m³
  • Gross weight per full case: 106 kg
  • Folding clamps, link cables, safety ropes and mains power cable included.
LIGHT OUTPUT / RGBW

Photometric data

3.5°Narrow beamSOURCE452,500 lux1 mØ 0.08 mDIAMETER / 4° REFERENCE50,278 lux3 mØ 0.24 mDIAMETER / 4° REFERENCE18,100 lux5 mØ 0.40 mDIAMETER / 4° REFERENCE9,235 lux7 mØ 0.56 mDIAMETER / 4° REFERENCE4,525 lux10 mØ 0.80 mDIAMETER / 4° REFERENCE48°Wide washSOURCE18,100 lux1 mØ 0.82 mDIAMETER / 44° REFERENCE2,011 lux3 mØ 2.46 mDIAMETER / 44° REFERENCE724 lux5 mØ 4.10 mDIAMETER / 44° REFERENCE369 lux7 mØ 5.74 mDIAMETER / 44° REFERENCE181 lux10 mØ 8.20 mDIAMETER / 44° REFERENCE
View readings by colour +

3.5° · Illuminance (lux)

Colour1 m3 m5 m7 m10 m
Red81,0009,0003,2401,653810
Green170,75018,9726,8303,4851,708
Blue29,7503,3061,190607298
White216,25024,0288,6504,4132,163
RGBW452,50050,27818,1009,2354,525

48° · Illuminance (lux)

Colour1 m3 m5 m7 m10 m
Red3,42538113769.934.3
Green6,92576927714169.3
Blue1,30814552.326.713.1
White8,47594233917384.8
RGBW18,1002,011724369181
DOCUMENTATION & DESIGN RESOURCES

Technical support

Need fixture libraries, control documentation or project support? Contact our technical team ↗
